The AIR GO, AIR CLEAN, and AIR JETCLEAN mobile welding fume filters and dust filtration systems are mobile plug-and-play solutions for the flexible extraction of welding fumes, grinding dust, and other dust at changing workplaces. Equipped with an extraction arm, compact filter housing, IFA-certified cartridge filters, and versions with or without automatic cleaning, the mobile filter units are particularly suitable for workshops, metalworking companies, mechanical engineering, metal fabrication shops, maintenance departments, and individual welding workstations in NON-ATEX areas. The systems are suitable for grinding dust, welding fumes, and general dust. They are mobile plug-and-play filtration systems equipped with IFA-tested and certified cartridge filters, an operating-hours counter, and an optional W3 version.
Applications of the Mobile Welding Fume Filters
The mobile filter units are used wherever welding fumes, dust, or particles need to be captured flexibly. They are particularly suitable for work areas where no stationary extraction system is available or where welding and grinding work is carried out at changing locations.
The greatest advantage of mobile welding fume filters is their flexibility. The unit is not permanently integrated into a central system but can be moved to the relevant workplace on castors. The extraction arm is positioned so that welding fumes, dust, or particles are captured as close as possible to their point of origin
Features of the Mobile Filter Units
Mobile welding fume filters can only operate reliably when the capture system, airflow capacity, filter medium, and maintenance requirements are correctly coordinated. The extraction arm must be easy to position and located sufficiently close to the welding point. At the same time, the filtration system must provide sufficient airflow to capture the generated emissions effectively.
The AIR GO is supplied as standard with a filter cartridge and an activated-carbon filter for reducing odours. The AIR CLEAN and AIR JETCLEANDF feature labyrinth pre-separators, filter cartridges with bayonet fittings, a dust container or dust drawer, and a clean-air outlet. The AIR JETCLEAN DF also includes a compressed-air tank for automatic filter cleaning.
The mobile filter units are suitable for welding fumes, grinding dust, polishing dust, and general dust in NON-ATEX areas. Typical locations include workshops, metalworking companies, metal fabrication shops, mechanical engineering facilities, maintenance departments, and changing welding workstations.
Benefits for Operators
A mobile welding fume filter is particularly useful when welding, grinding, or polishing work is not always carried out at the same workstation. The unit can be repositioned quickly and therefore remains independent of fixed ductwork or stationary capture systems.
Your Benefits at a Glance:
- Mobile welding fume filters for changing workplaces
- Mobile plug-and-play filtration systems for NON-ATEX areas
- Welding fume, grinding dust, and polishing dust extraction
- Extraction arm for source capture directly at the point of origin
- IFA-/BGIA-certified cartridge filters according to the product data sheet
- W3-certified versions available
- Compact design for workshops and production areas
- AIR GO with an activated-carbon unit supplied as standard for reducing odours
- AIR CLEAN with a labyrinth pre-separator for coarse particles
- AIR JETCLEAN DF with fully automatic filter cleaning
- Operating-hours counter supplied as standard
- Easy positioning through an extraction arm with externally mounted joints
- Easily accessible components for maintenance and cleaning
- Optional stationary version or sound-insulation enclosure, depending on the model
The AIR GO is designed as a mobile entry-level model for professional applications. It is suitable for companies requiring a compact, mobile solution for capturing welding fumes, grinding dust, polishing dust, and general dust. The AIR GO has a large filter surface, an activated-carbon unit supplied as standard for reducing odours, an operating-hours counter, and an extraction arm with externally mounted joints.

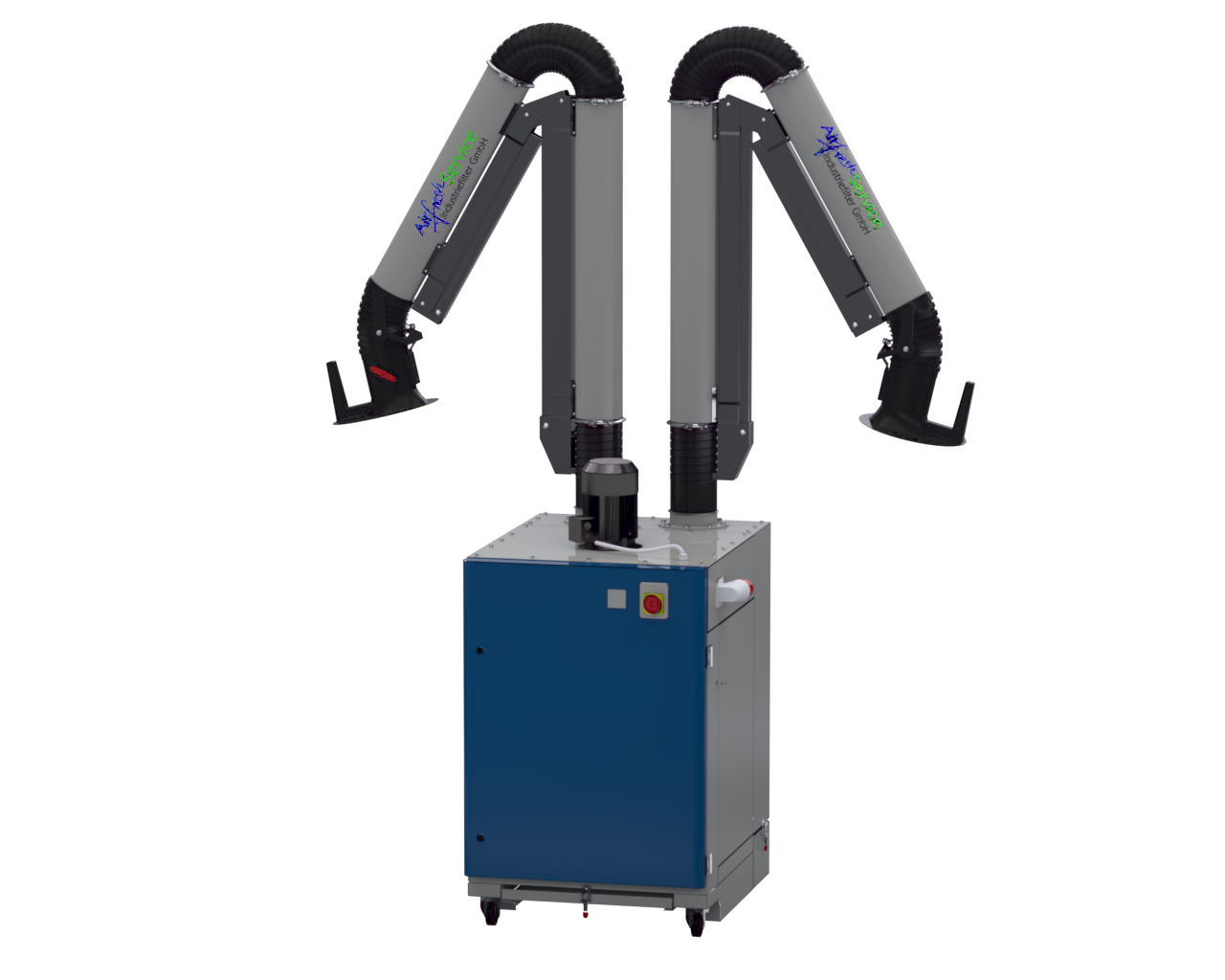

The AIR CLEAN is designed for applications requiring a more powerful mobile filtration system with pre-separation. The standard labyrinth pre-separator protects the fine filter from coarse particles. The certified filter cartridges provide a separation efficiency of more than 99.9%. Maintenance, cartridge removal, and emptying of the dust collection containers are designed for straightforward operation.
The AIR JETCLEAN DF is the mobile solution for applications where automatic filter cleaning is required. The system is also equipped with a labyrinth pre-separator, certified filter cartridges, and an extraction arm. The fully automatic filter-cleaning system supports a long filter-medium service life and makes the AIR JETCLEAN DF particularly suitable for frequent or intensive welding and grinding work.
Extraction at Changing Workplaces
In workshops, metal fabrication shops, and maintenance areas, work is often not carried out continuously at one fixed location. Mobile dust filters can be moved directly to the relevant workplace. The extraction arm is positioned at the emission source so that fumes or dust are captured as early as possible.
Technical Data for the AIR GO, AIR CLEAN & AIR JETCLEAN
The following table shows the most important technical specifications of the AIR GO, AIR CLEAN, and AIR JETCLEAN model ranges. For specific projects, the airflow volume, filter surface, type of dust, capture system, and installation conditions should be assessed individually.
AIR GO, AIR CLEAN & AIR JETCLEAN Product Overview
| Products | Airflow m³/h | Filter surface in m² | Power in kW | Extraction arm | Automatic cleaning | W3 tested |
| AIR GO | 1.300 | 37 | 1,1 | 160 Ø / 3,3 m | no | Available |
| AIR CLEAN 15 | 1.000 | 12 | 0,55 | 160 Ø / 3,3 m | no | no |
| AIR CLEAN 17 | 1.100 | 12 | 0,75 | 160 Ø / 3,3 m | no | no |
| AIR CLEAN 21 | 1.550 | 24 | 1,1 | 160 Ø / 3,3 m | no | no |
| AIR CLEAN 22 | 2.150 | 24 | 2,2 | 2 x 160 Ø / 3,3 m | no | no |
| AIR JETCLEAN DF 15 | 1.000 | 8 | 0,55 | 160 Ø / 3,3 m | yes | no |
| AIR JETCLEAN DF 17 | 1.100 | 8 | 0,75 | 160 Ø / 3,3 m | yes | no |
| AIR JETCLEAN DF 21 | 1.550 | 16 | 1,1 | 160 Ø / 3,3 m | yes | Available |
| AIR JETCLEAN DF 22 | 2.150 | 16 | 2,2 | 2 x 160 Ø / 3,3 m | yes | no |
