The FMN-V emulsion mist filter is a high-performance air filtration system designed for the highly efficient separation of emulsion mist, metalworking fluid mist, smoke, oil smoke, and small quantities of dust generated during industrial manufacturing processes. The FMN-V 5 to FMN-V 60 model series and larger units have been developed for demanding applications in which contaminated process air must be reliably captured and filtered and, depending on the system design, can be returned to the working area in recirculation mode. Airflow rates of up to 50.000 m³/h can be achieved.
Application areas of the FMN-V emulsion mist separator
The FMN-V is particularly suitable for production environments where extracting emulsion mist, filtering metalworking fluid mist, or removing smoke from machine tools are key requirements. The filter series is designed for processes that generate moist aerosols, smoke, ultrafine particles, and small quantities of dust. Thanks to its variable filter configuration, the system can be adapted to different machining processes, metalworking fluids, airflow volumes, and types of emissions.
Typical applications
- Emulsion mist separation at CNC machining centers
- Extraction of metalworking fluid mist from lathes
- Smoke separation during machining processes
- Air purification for milling machines and boring mills
- Aerosol extraction from grinding machines
- Filtration of small quantities of dust in metalworking
- Separation of process fumes generated by thermally stressed metalworking fluids
- Machine tools used in series production
- Mechanical engineering and metal fabrication
- Automotive industry and suppliers
- Machining companies and contract manufacturers
- Production halls with air recirculation systems
- Extraction systems for individual machines and machine groups
- Central air filtration systems with modular expansion options

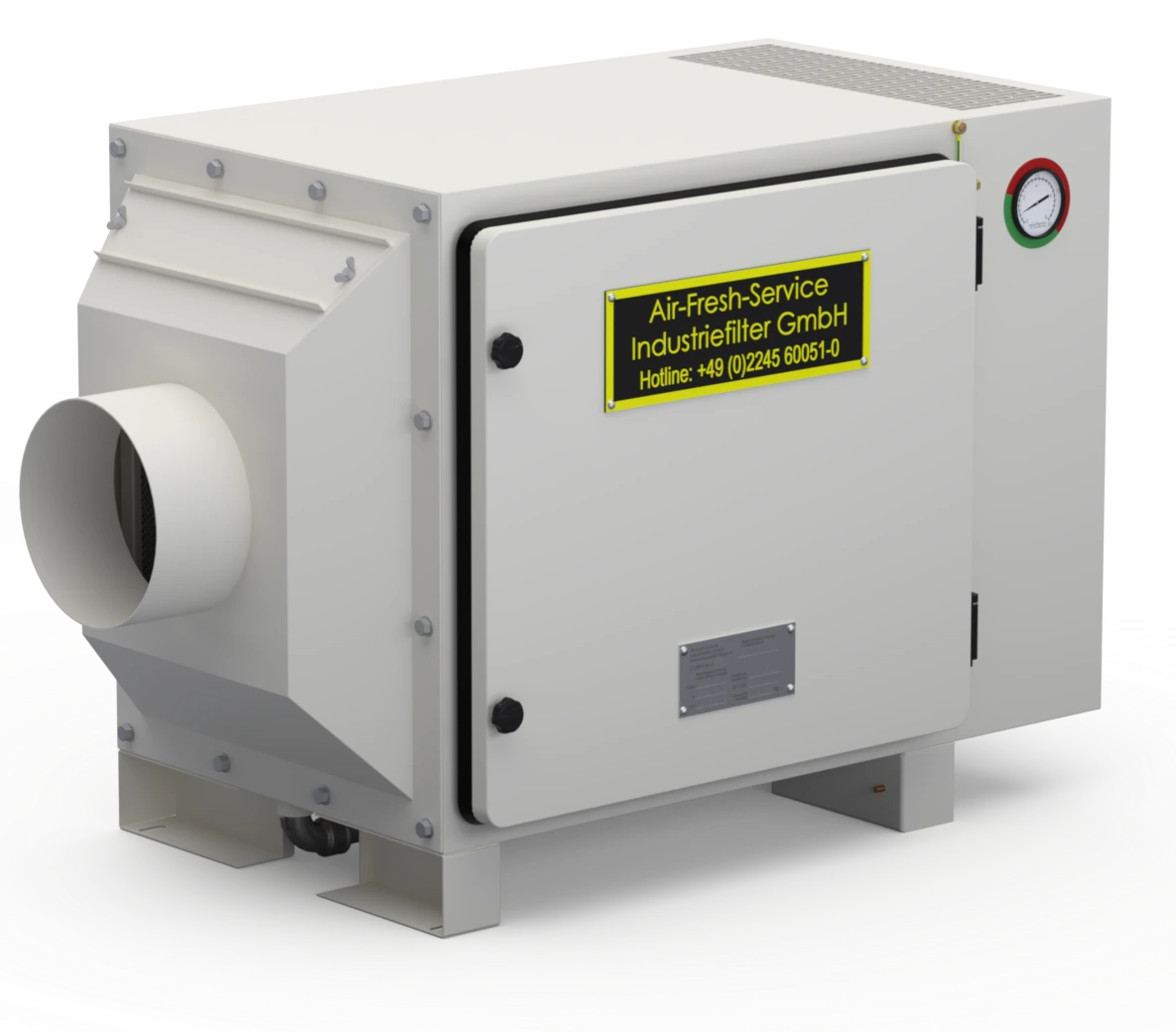

Device features FMN-V emulsion mist separator

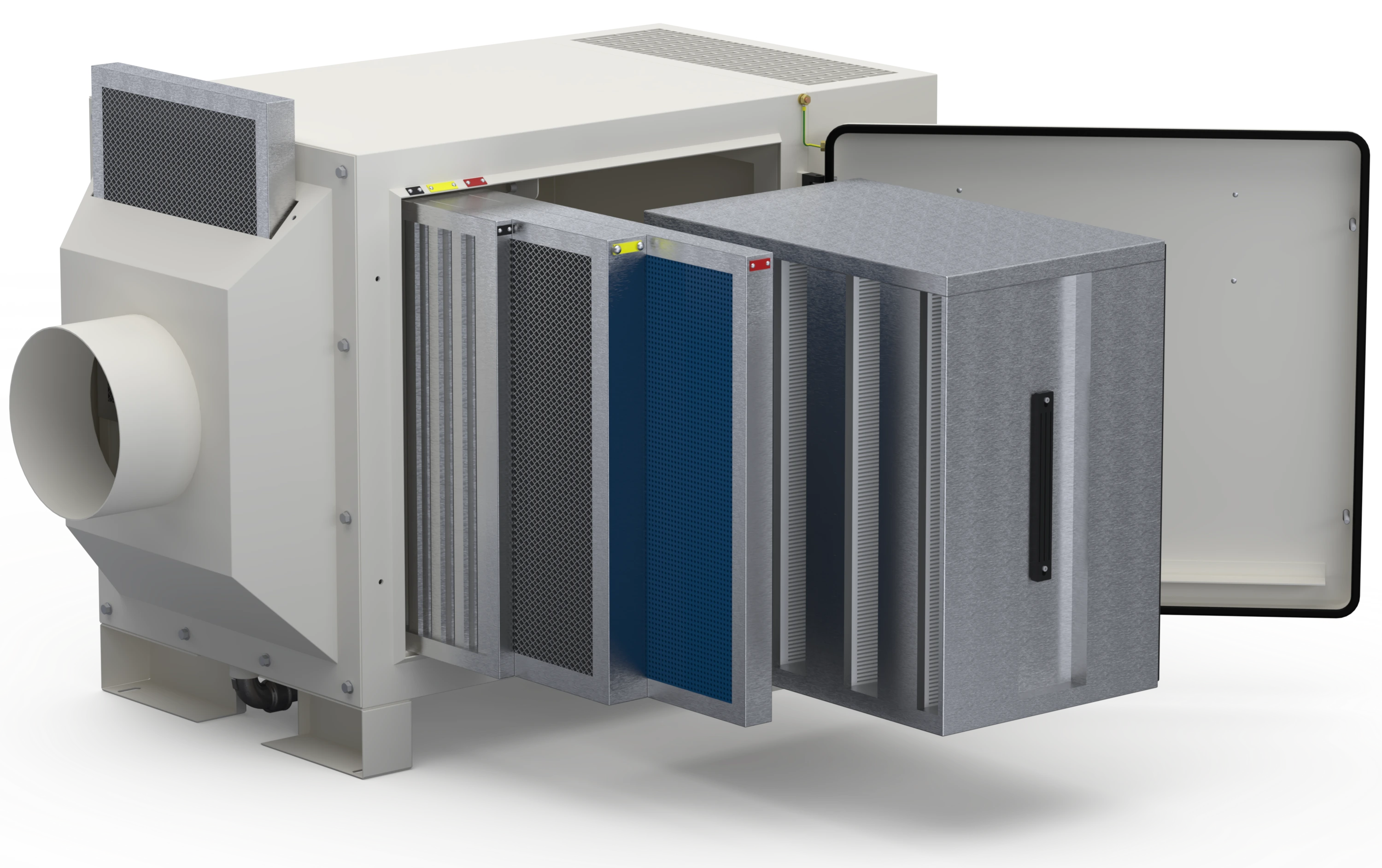

A key feature of the FMN-V emulsion mist separator is its well-engineered, multi-stage filter design. The housing is made of 1.5 mm sheet steel and welded to ensure a drip-tight construction. Inside, various slide-in rails allow the pre-filter stages to be configured flexibly. Two guide rails ensure that the final filter stage can be removed and serviced easily.
The pre-filter stages separate larger droplets, aerosol components, and initial particle loads. Depending on the application, they can be designed as reusable elements and cleaned by washing or spraying. The main filter stage is designed as a V-shaped H13 filter and provides highly efficient final separation of the finest particles and aerosol components.
A four-point clamping mechanism securely holds the final filter stage and the pre-filter stages in place. This prevents process air from bypassing the HEPA filter or the pre-filter stages. The result is reliable filtration with a high level of operational safety, even in demanding industrial applications.
Your advantages at a glance:
- Highly efficient separation of emulsion mist, smoke, and fine particles
- Suitable for recirculation operation when appropriately configured
- Model series from FMN-V 5 to FMN-V 60 and larger
- Robust, drip-tight welded sheet steel housing
- Housing base designed as a collection tray with drain connection
- Connection option for a siphon unit for liquid discharge
- Variable configuration of the pre-filter stages
- Regenerable pre-filters that can be cleaned by washing or spraying
- Space-saving V-shaped H13 main filter
- Filter inserts designed to prevent incorrect installation
- Four-point clamping mechanism to prevent filter bypass
- Maintenance door with an all-round Perbunan profile seal with steel core
- Variable airflow direction, with suction from the left or right
- Wall brackets
- Height-adjustable support brackets
- Drip apron to reduce liquid leakage when opening
- Optional analog or electronic filter contamination indicator
- Optional additional pre-separators in the intake hood
- Frequency-controlled ECblue motors for significant energy savings
- Electronically adjustable airflow
- Integrated motor protection and active temperature management
- Optional wireless programming of settings via Android and iOS
- UL approval
- Can be retrofitted with modern filter media and EC technology
- Can be converted to electrostatic filter operation if the metalworking fluid is changed, for example to oil
- Modular system for higher airflow volumes and project-specific system concepts
- Optional constant airflow control
Benefits for operators
The FMN-V emulsion mist separator helps operators make production processes cleaner, safer, and more cost-effective. Effective air purification reduces contamination around machinery, in production hall air, and at workstations. At the same time, separated liquid can be discharged in a controlled manner via the collection tray and drain connection.
Another advantage is its long-term retrofit capability. Since technical upgrades such as modern EC motors, improved filter media, or electronic monitoring systems can also be installed in older units, the FMN-V series remains adaptable for many years. This is particularly important when machining processes change, new metalworking fluids are introduced, or production capacities expand.
Application area of the filter system
- Low-maintenance design for continuous industrial operation
- Clean production hall air through reliable emulsion mist separation
- Reduction of deposits on machines, ceilings, floors, and ductwork
- Improved working conditions in metalworking
- Timely maintenance through optional filter monitoring
- Energy-efficient operation with frequency-controlled EC motors
- Adjustable airflow for changing process requirements
- Regenerable pre-filters reduce maintenance requirements
- Drip-tight housing design for safe liquid handling
- Flexible installation using mounting rails according to customer specifications
- Modular expansion for higher extraction airflow volumes
- Can be integrated into centralized or decentralized extraction systems
- Suitable for new installations and the modernization of existing filtration systems
The FMN-V is therefore not just a filtration unit, but a scalable system concept for industrial air purification. It can be used as a standalone unit on a single machine, as a group extraction system for several machining centers, or as part of a larger production hall air purification and heat recovery solution.
FMN-V for recirculation mode, heat recovery and summer/winter switching
The FMN-V series can be operated in recirculation mode, provided that the application, filter design, and operational requirements allow it. The advantage is that the cleaned air remains inside the building, helping to reduce heat loss. For larger airflow volumes in particular, a project-specific assessment is recommended. In such cases, heat recovery or an alternative summer/winter operating mode can help achieve the best possible balance between energy efficiency and process reliability.
In winter, the cleaned air can remain inside the building, reducing heating energy consumption. In summer, depending on the system design, a different airflow configuration may be appropriate to reduce heat loads. The FMN-V series provides a flexible technical basis for this and can be adapted to existing production conditions.

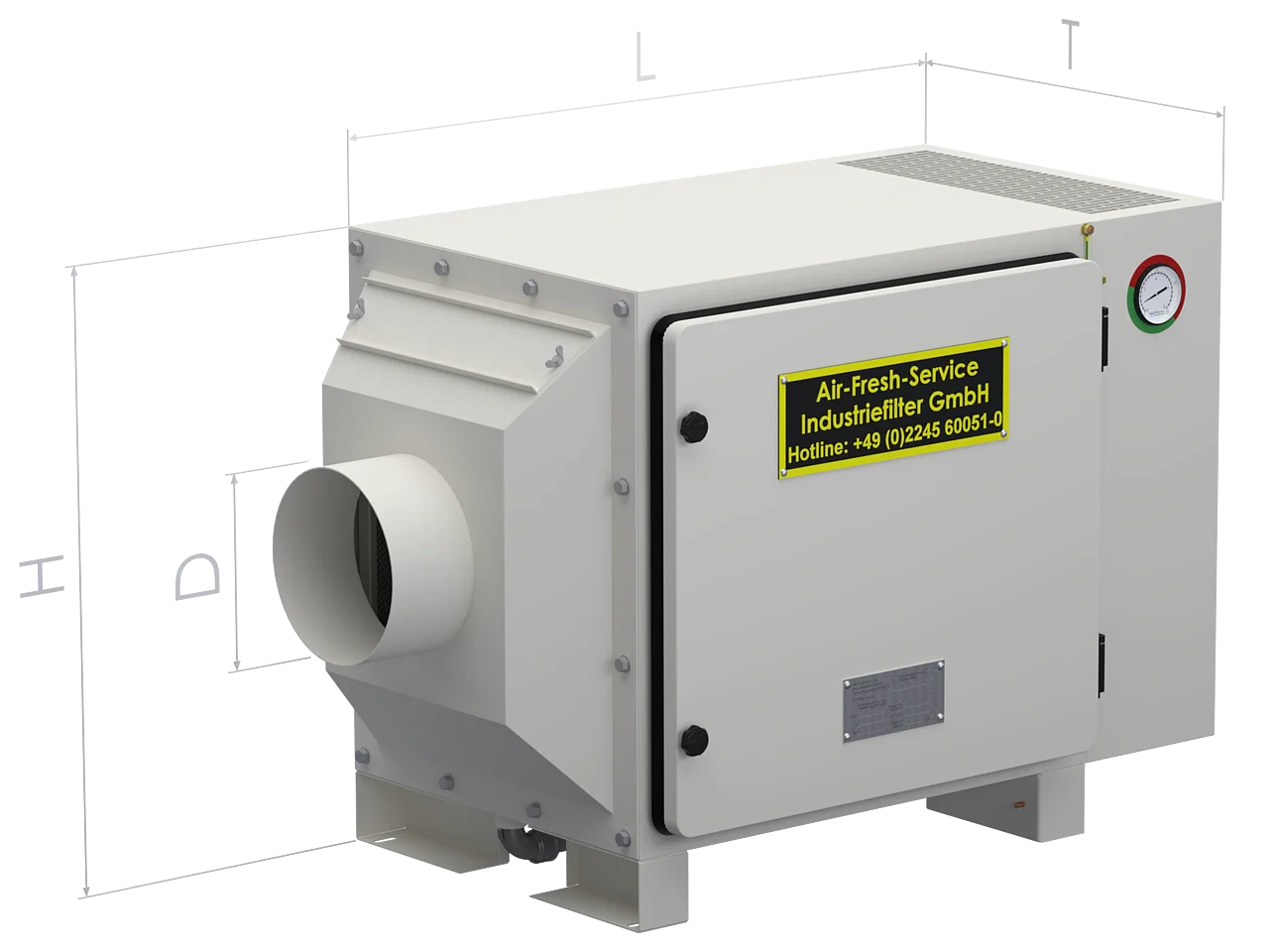

Technical data FMN-V emulsion mist separator
The following overview shows the most important technical and design specifications of the FMN-V series. For specific projects, air volume, emission type, cooling lubricant, engine room, piping lengths, installation conditions, and desired operating mode should be individually reviewed.
